Cartridge inks
The JV100-160 is available in a cartridge ink model.
The cartridge model comes in a 4 and 8 colour configuration with all Mimaki Core Technologies on board.
Expert printing made easy
Low Cost. High Return.
JV100-160 Solvent printer
Built in response to market demands, the JV100-160 makes high quality solvent printing available at an entry-level price. Mimaki’s proven technology featured in this new printer advances ease of use, and with the possibility to load 8 different colours, high definition colour reproduction comes standard.
Unique features

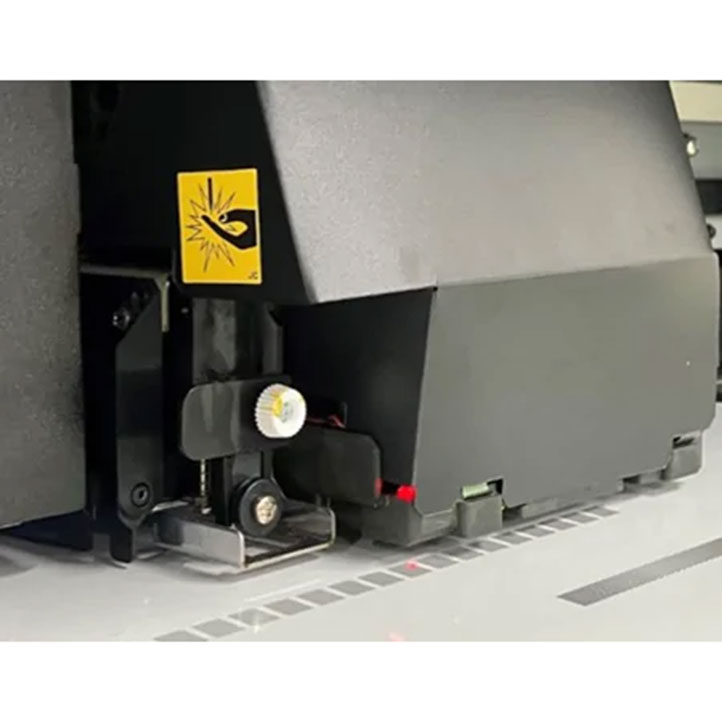

DAS system
Performs both a bi-directional and media feed adjustment.
Introducing Mimaki’s -easy to operate- Dot Adjustment System (DAS), which automatically performs two adjustments: the bi-directional adjustment and the media feed adjustment.
The bi-directional adjustment assures the drop landing accuracy for a perfect round dot, resulting in the highest possible print quality.
The media feed compensation optimises the feeding of the media, eliminating horizontal banding.
ID Cut with cutter combo
Combine the JV100-160 with a Mimaki cutter for seamless integration using the ID cut workflow.
Maximise the flexibility of your production and combine the JV100-160 with a Mimaki FXII cutter, seamlessly integrated using the ID-Cut workflow.
Simply print a barcode with each print & cut job and benefit from an automated continuous workflow without the intervention of an operator.
RasterLink7
Developed to design your own favourite menu settings – is user friendly and now equipped with variable data printing.
RasterLink7 comes in the box and has upgraded features over RasterLink6 plus. It uses a new RIP core with 25% faster processing time of complex PDF files.
Designed to produce a wide range
of materials and applications
Vehicle wrapping, Outdoor and Indoor Signage, Window Signage, Backlit, Banners, Posters, Canvas, Wallpaper, Labels & Decals, Floor Stickers, POS-display, Transfer Material and more.
CARWRAP
FLOOR STICKERS
BACKLIT SIGNAGE
CANVAS
LABELS
TRANSFER MATERIAL
Solvent ink technology
for superior quality
The JV100-160 comes with a wide range of solvent inks, from 4 colours up to 8 colours. Mimaki’s fast drying solvent inks, known for its excellent weather ability and rub-fastness is available for the JV100-160 in 4 colour BS4, 8 colour SS21 and newly developed low-priced AS5.
With this new printer, Mimaki is offering a solution for each customer with such a wide range of different ink types and ink configurations to choose from. From low-cost inks in 4 and even 8 colours, the JV100-160 is the most competitive printer in the market, guaranteeing your highest profit.
For even more confidence
our products are certified
GREENGUARD GOLD certified products meet the rigorous standards for low emission of volatile organic compounds (VOCs) and ensures that a product is acceptable for use in environments such as schools and healthcare facilities without polluting the indoor air quality.
Our SS21, BS4, and AS5 inks are GREENGUARD GOLD certified.
Mimaki’s JV100-160 compatible SS21 mild solvent ink meets the chemical requirements of the Nordic Swan Ecolabel program for printing companies.
Mimaki’s SS21, BS4 and AS5 eco-solvent inks are compliant with the Avery Dennison ICS Performance Guarantee Program.
The ICS Performance Guarantee assures the performance of Avery films with a printing platform when customers are working according to the relevant Avery Dennison Technical Bulletins associated with that product.
JV100-160
Core Technologies
This printer includes Mimaki Core Technologies that offer the best print quality, maximum productivity and reduced exposure to risks that can delay production. See below list of core technologies that are included in the JV100-160.
Productivity & Convenience
- Nozzle Check Unit (NCU), to detect missing nozzles
- Nozzle Recovery System (NRS), to replace missing nozzles
- Automatic Cleaning Function, to keep the print head clean
- Automatic Wiper Cleaner, to keep the wiper clean
- Jam Sensor, to prevent print head damage
Quality printing
- Mimaki Advanced Pass System 4 (MAPS), to reduce banding
- Waveform Control (WFC), for best possible image sharpness
- Variable Dots Technology (VDT), for smoother gradations
- Mimaki Fine Diffusion (MFD), for smoother colours
- Dot Adjustment System (DAS), for stable printing
| Model | JV100-160C |
|---|---|
| Print head | 2 drop-on-demand piezoelectric head; stagger arrangement |
| Print resolution | Y: 360 dpi, 720 dpi, 1200dpi; X: 600dpi, 900 dpi, 1200dpi |
| Drop size | Min: 4pl, Max: 20pl |
| Head height | Manual adjustment (2.0/2.5mm from platen) |
| Ink type | SS21: CMYK / CMYKLcLmLkOr AS5: CMYK / CMYKLcLmLkOr BS4: CMYK |
| Ink colour | 4C (CMYK) / 8C (CMYKLcLmLkOr) |
| Ink supply | 600ml ECO ink pack / 2000ml* Ink bag |
| Max printing width | 1,610mm |
| Max media width | 1,620mm |
| Media thickness | 1.0mm or less |
| Outside diameter | 250mm or less |
| Roll weight | 45kg or less |
| Take-Up | Included |
| Interface | USB2.0 / Ethernet |
| Body weight | 166kg |
| Dimension (WxDxH) | 2775/700/1392mm |
| Power supply | 2 x Single phase (AC100~120/200~240V +/- 10%, 50/60Hz +/- 1Hz) |
| Power consumption | AC100V: 1.44kW / AC200V:1.92kW |
| Safety Standards | VCCI class A, FCC Class A, CE Marking (EMC Directive, Machinery and Low Voltage Directive), CB Certification, RoHS, RCM, EAC |
Software RIP
Mimaki’s dedicated software RIP, Rasterlink 7, comes in the box.
Rasterlink 7
Rasterlink 7 has new functionality and upgraded speed performance.
The JV100-160 is available in a cartridge ink model. The cartridge model comes in a 4 and 8 colour configuration.
EU MODEL
AS5
Eco Solvent Ink
Newly developed, most competitive 8 colour eco solvent ink with excellent weather ability and rub-fastness.
Packaging
600ml eco cartridge and 2L bags*
Colour
4 colours: CMYK
8 colours: CMYK Or Lk Lc Lm
8 colours: CMYK Or Lk Lc Lm
Ink Type
Eco solvent ink for indoor and outdoor applications.
SS21
Eco Solvent ink
Benchmark high quality mild solvent ink with excellent weather ability and rub-fastness.
Packaging
2L bags*
Colour
4 colours: CMYK
8 colours: CMYK Or Lk Lc Lm
8 colours: CMYK Or Lk Lc Lm
Ink type
Mild solvent ink for long lasting indoor and outdoor applications and vehicle wrappings.
BS4
Eco Solvent Ink
Cost effective, fast drying and certified eco solvent ink.
Packaging
600ml eco cartridge and 2L bags*
Colour
4 colours: CMYK
Ink type
Eco solvent ink for indoor and outdoor applications and point-of-sale.
*2000ml ink pack requires a purchase of MBIS3 ink bulk system
