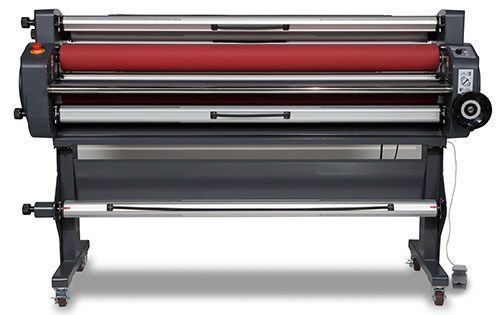

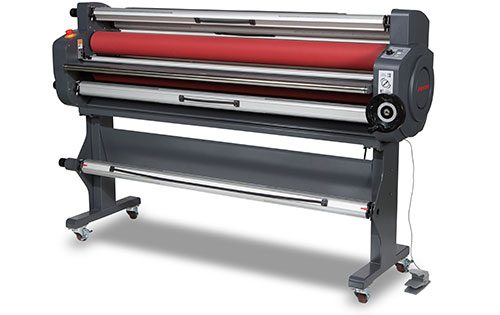

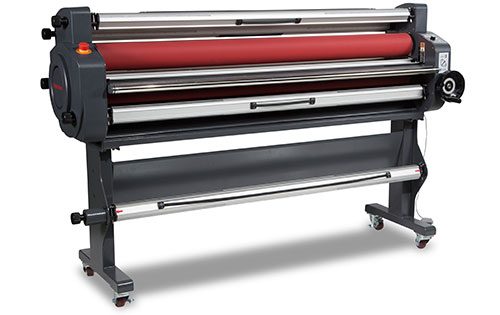

LA Series Laminators
Heat-assisted devices for superior finishing
LA Series laminators are heat-assisted devices that improves overlaminate film adhesion, and reduces the potential for silvering effect created by pressure sensitive overlaminates.
Outdoor Signage, Posters, Swing P.O.P. (PET film), Labels, Packaging and much more…
Specifications of LA Series Laminators
|Settable media width||Max. 1.580 mm (62,2in)|
|Laminating speed||Max 7,5 m / minute|
|Film thickness||Max. 35 mm|
|Core diameter||3 inches|
|Warm temperature||Max. 60 degrees C|
|Power consumption||1800W or less|
(with measure scale）
|3 inches x 5 pieces|
|Outer dimensions（W×D×H）||2.000×550×1.280 mm|
|Weight||205 kg (451,9 lb)|
Mimaki Vision Laminate 310-137(Gloss)
|Item||Mimaki Vision Laminate 310-137 (Gloss)|
|Size||1370mm (54in) x 50m|
|Release paper||Glassine paper|
|Film thickness||Representative value 0,07mm (including adhesive)|
|Outdoor durability||3 years (estimated)|
Features of LA Series Laminators
Superior finishing through Heat-assist
LA Series laminators are heat-assisted devices with a maximum temperature of 60˚C. This heat assistance improves overlaminate film adhesion, particularly to surfaces printed with UV-curable inks, and reduces the potential for the silvering effect created by pressure sensitive overlaminates. Due to instant curing, UV inks tend to have a slightly uneven surface which can trap air bubbles during the laminating process, causing silvery specs that can take away from the appearance of the product.
Fast throughput Speeds
Laminating speeds of up to 295 linear inches per minute – or nearly five inches per second – means that the finishing can keep up with production and reduce bottlenecks.
Simple and reliable Operation
This easy-to-use laminator includes all functions on one operation panel, with easy access to the pressure handle and foot pedal. Additionally, a take-up reel makes it easy for one person to control the entire process.
Features of Mimaki Vision Laminate 310-137 (Gloss)
Mimaki Vision Laminating Film
Designed specifically for use with UV-curable inks and LA Series laminators, Mimaki Vision Laminate 310 (Gloss) film offers fine finishing with a glossy feel while maintaining the colour brightness of the print. This high quality, heat assisted overlaminate is also a cost-effective alternative to cold laminating films.
The unevenness of UV ink on the printed surface is likely to generate silvering by conventional laminating film. Mimaki Vision Laminate 310 applies more soft adhesive and weaker film in stiffness than the conventional ones, which reduces the silvering of UV print laminating to retain the essential beauty.
Complete System from Mimaki
LA Series laminators with Mimaki Vision Laminate film are the ideal companions to a UCJV Series UV-LED cut-and-print device. Because UCJV prints are instantly dry, they can immediately be finished on an LA Series laminator. This complete, harmonised solution ensures reliable performance and quality output for those times when a protective overlaminate is preferred.
Glossy Finish is provided with Laminating
The surface of UV printing appears often unevenness and matte finish without glossiness. However laminating by [MV Laminate 310] can make the surface much more flat and provides the glossy finish and color brightness.
