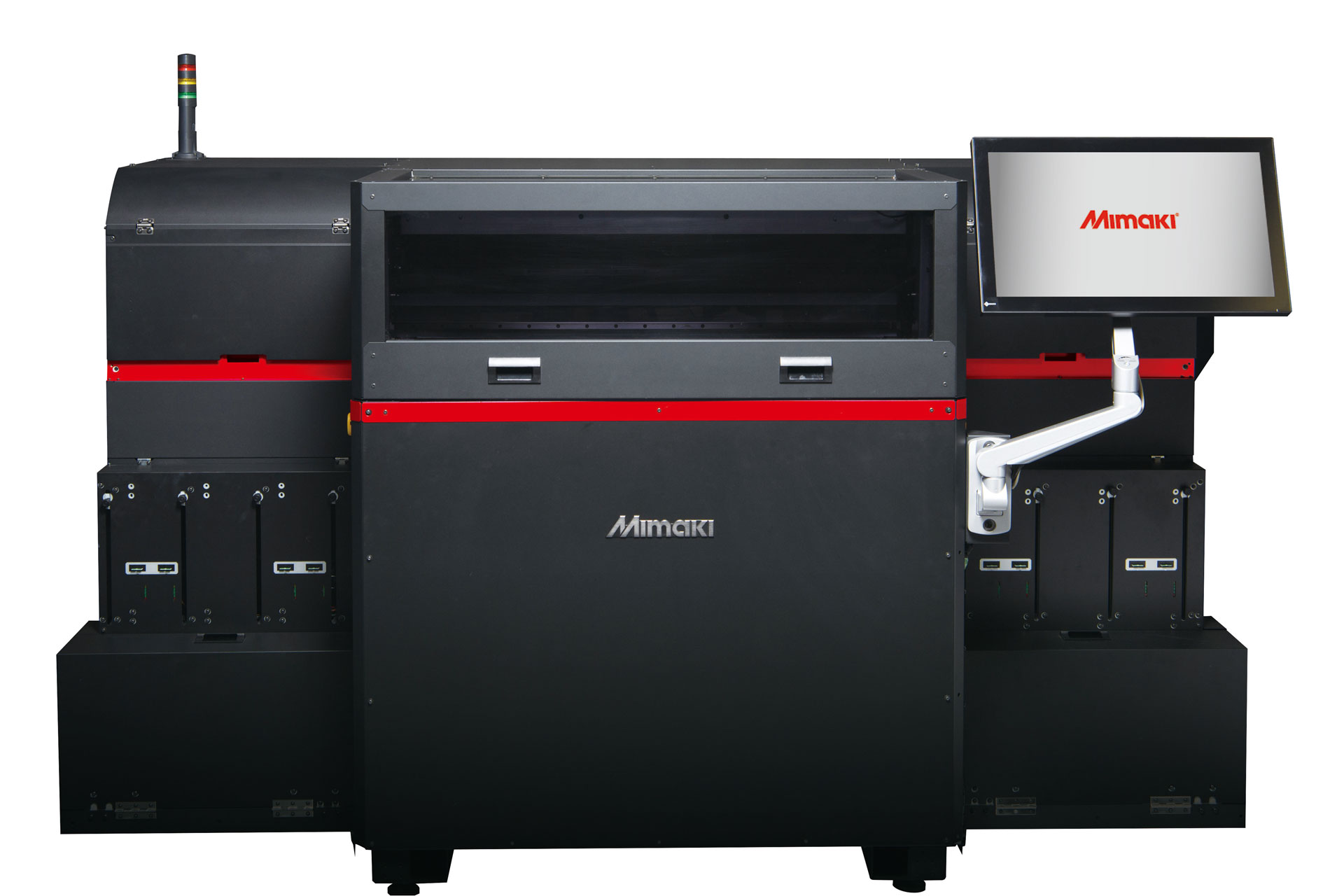

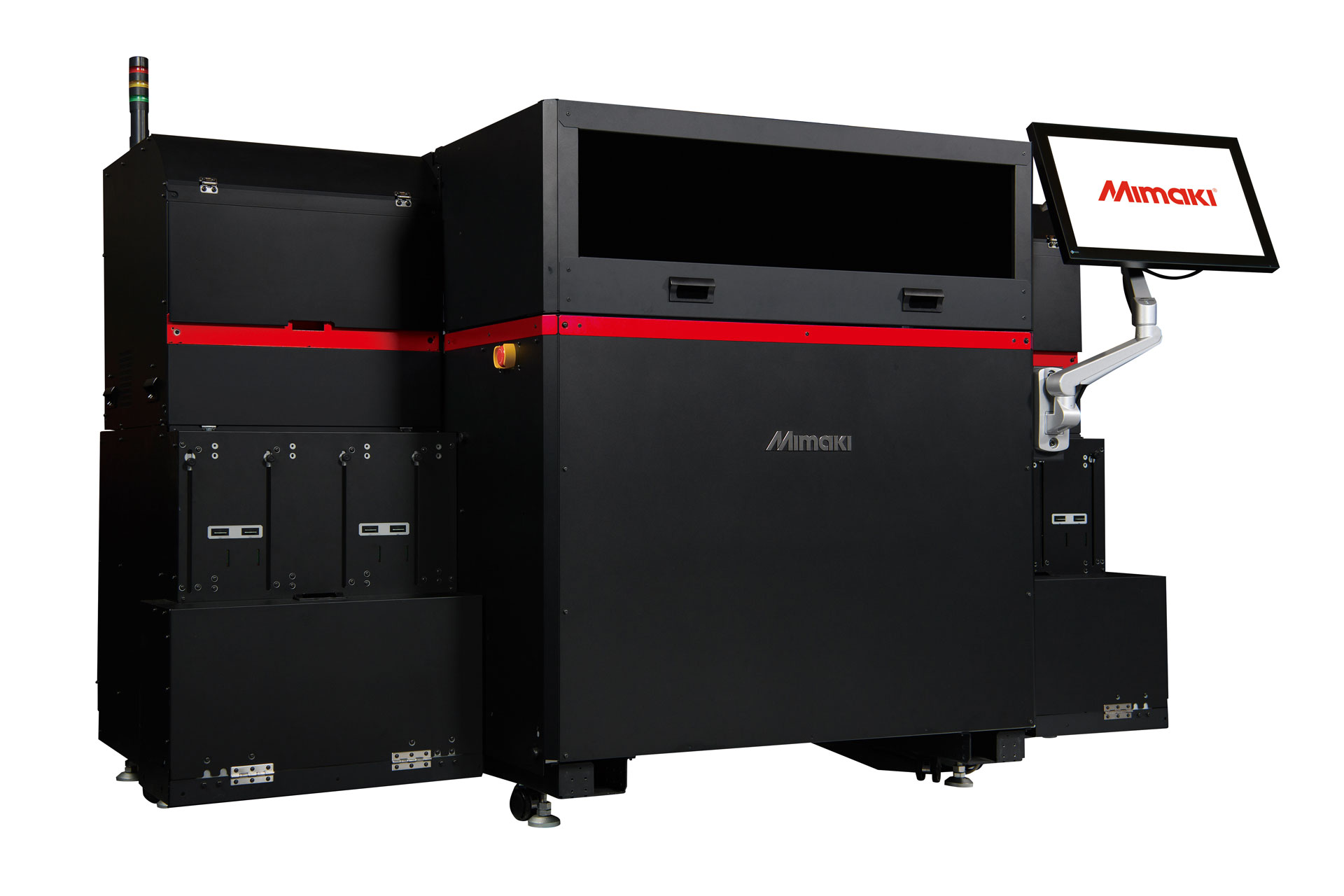

3DUJ-553

The world’s first full-color 3D UV-curable inkjet printer

With the Mimaki 3DUJ-553 UV LED printing solution we introduced a brand new approach to 3D printing. This is the world’s first 3D printer with over 10 million colours, enabling the production of 3D objects, eliminating the time-consuming finishing and the risk of damaging small detailed parts.


  • Printing in Full Colour with over 10 million colours with ICC profiling/proofing
  • Water-soluble support material, which prevent small detailed parts to break
  • Extreme high uptime
  • WYSWYG What You See is What You Get
  • Build size 500 x 500 x 300 mm
  • Transparency for glossy effects
  • Possibility to mix clear and colours to achieve different levels of transparency
  • Existing 3D data of white objects can be easily coloured in 3D Link software
  • Strength of the material is comparable with ABS
  • 3 printing qualities (20 – 32 – 42 micron layering)
  • Smooth surface

Applications

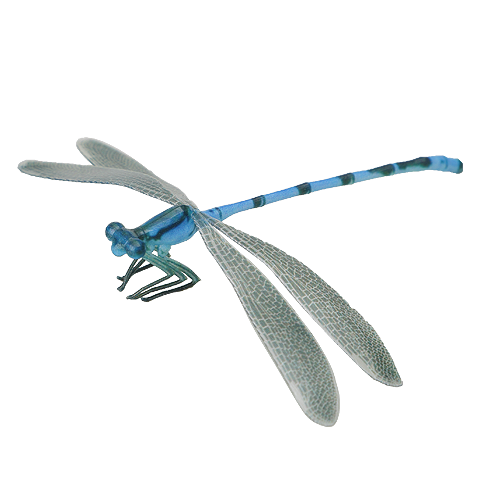

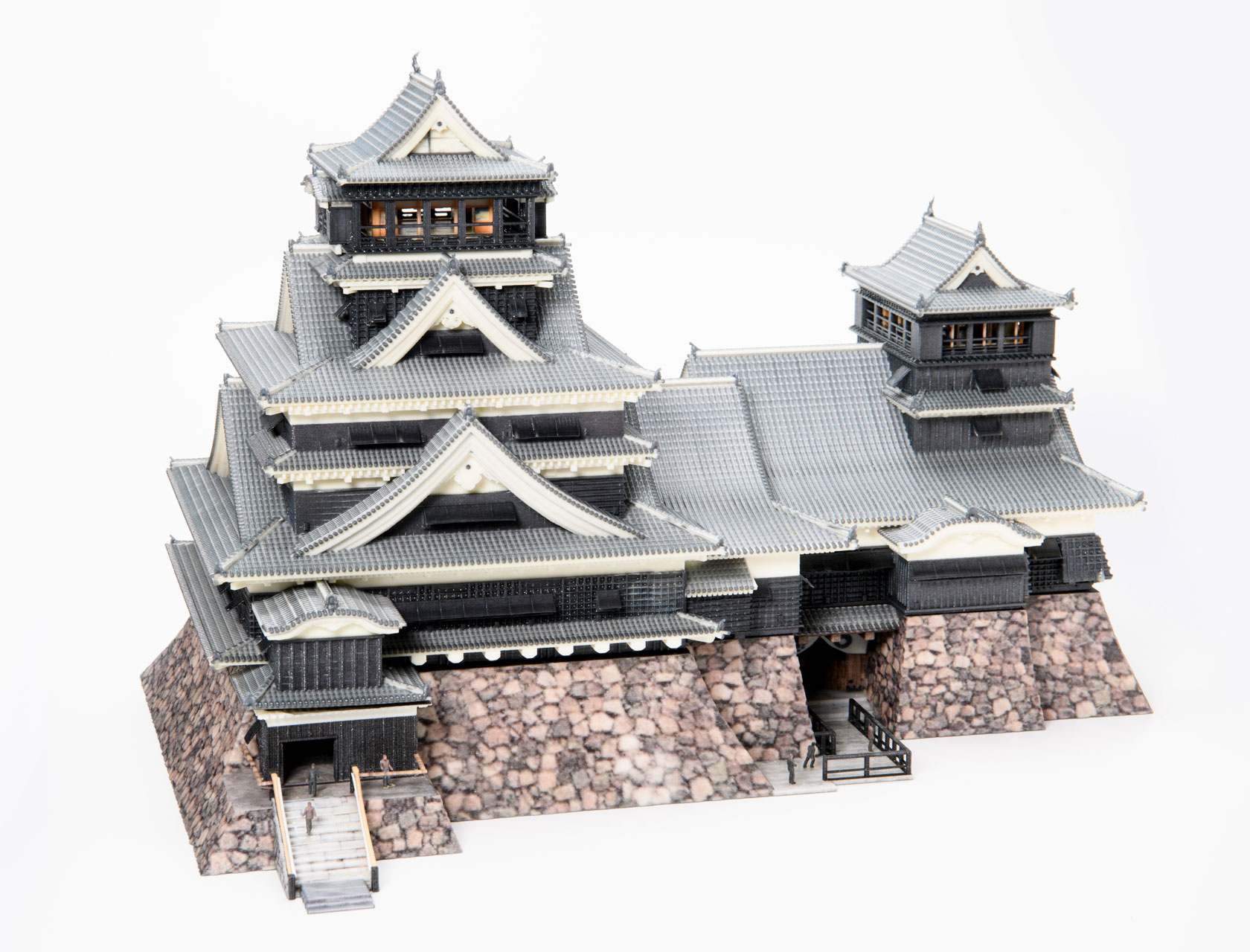

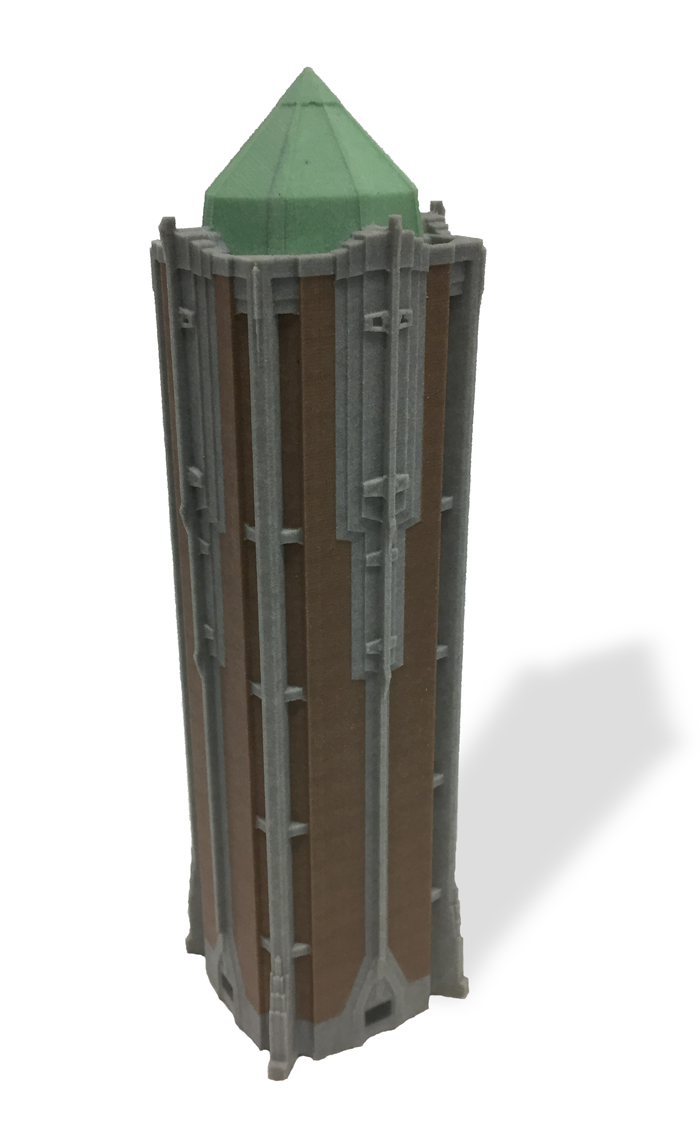

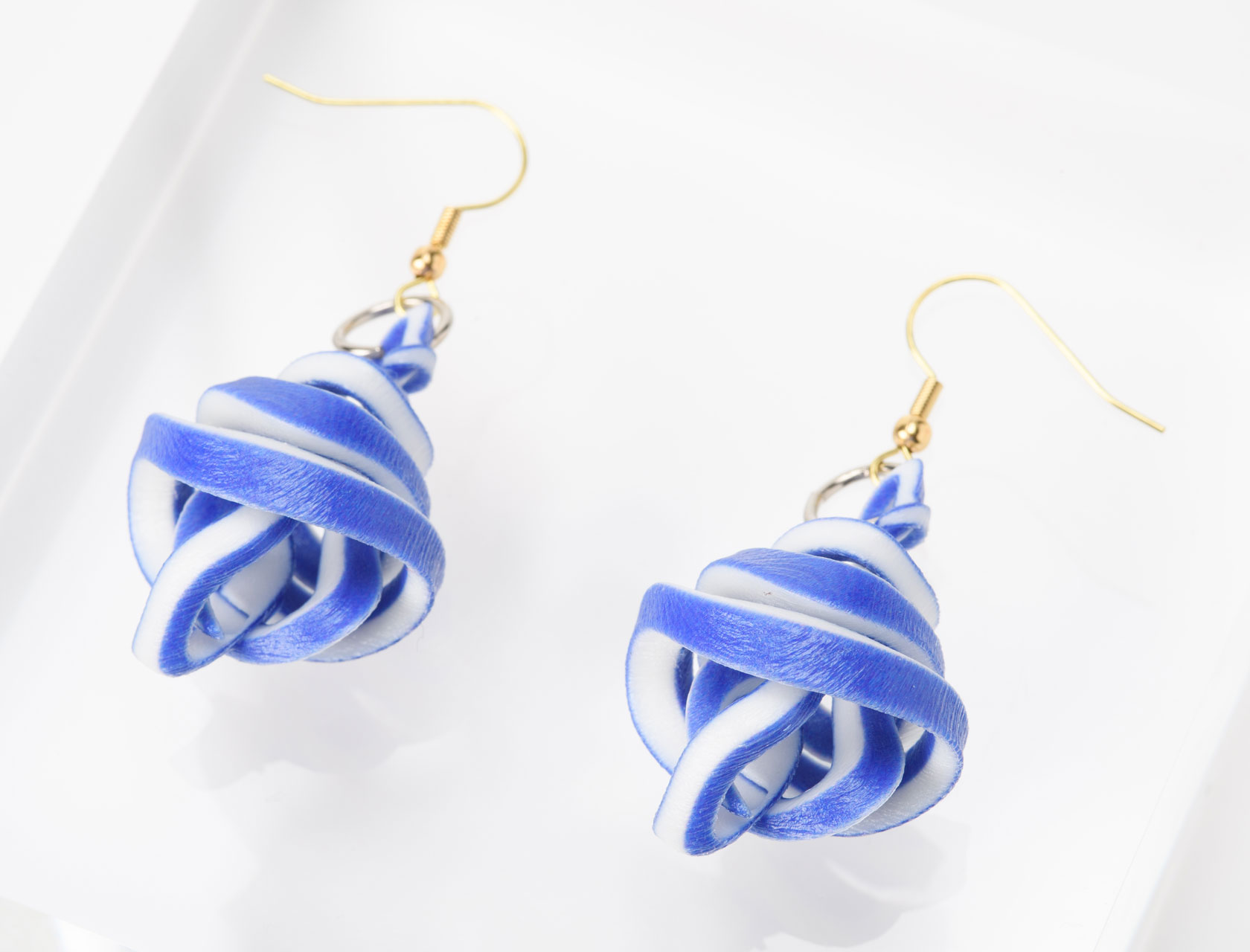

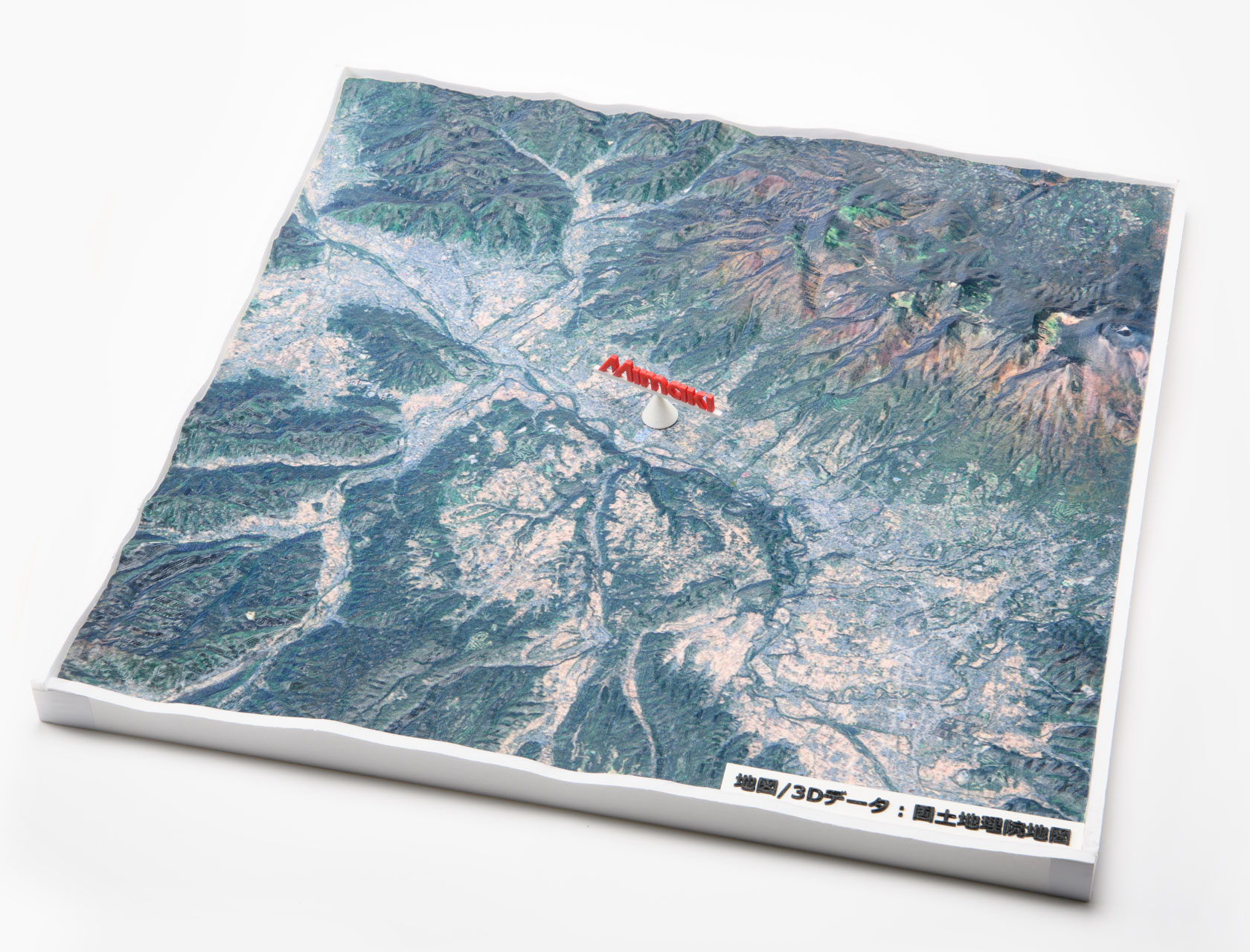

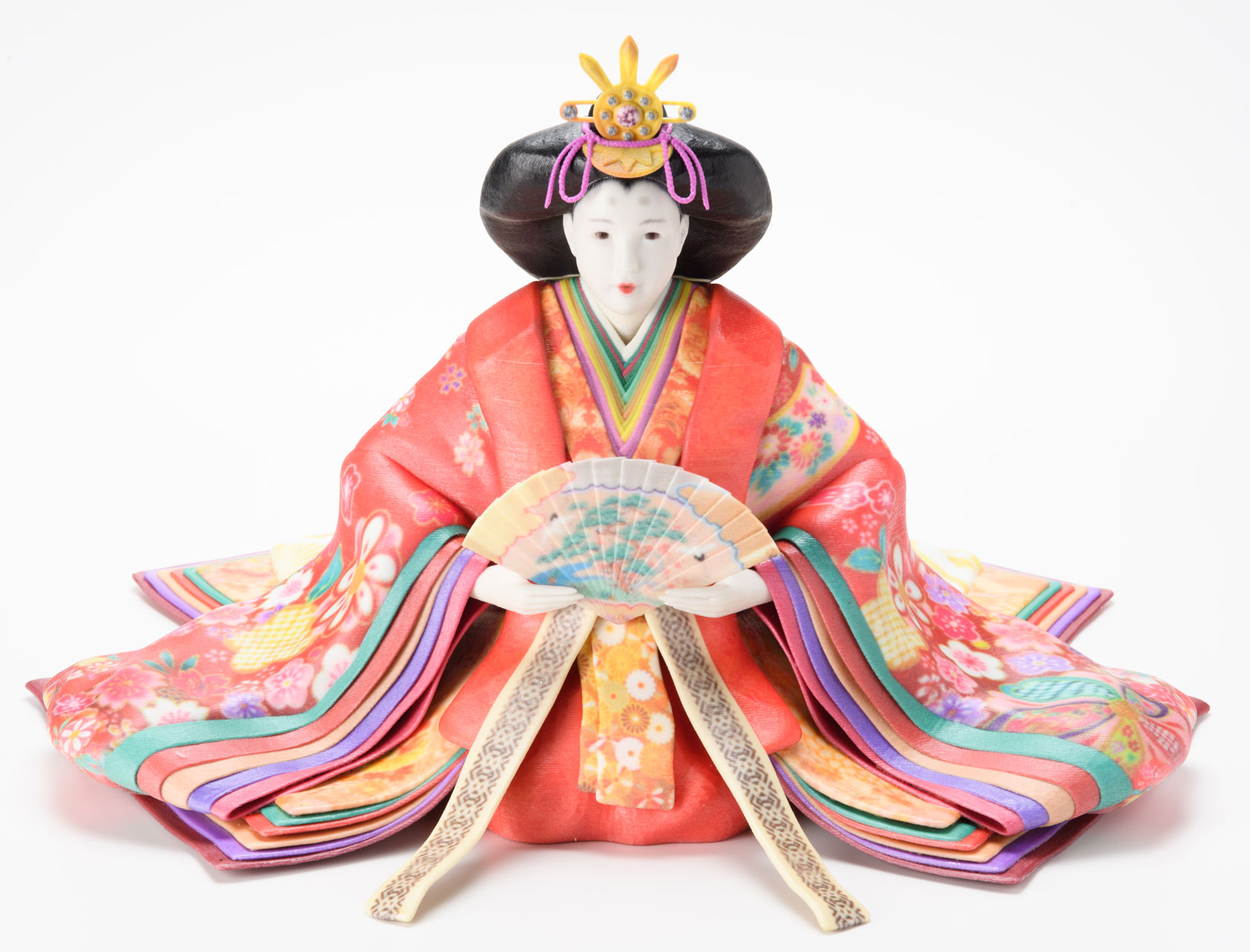

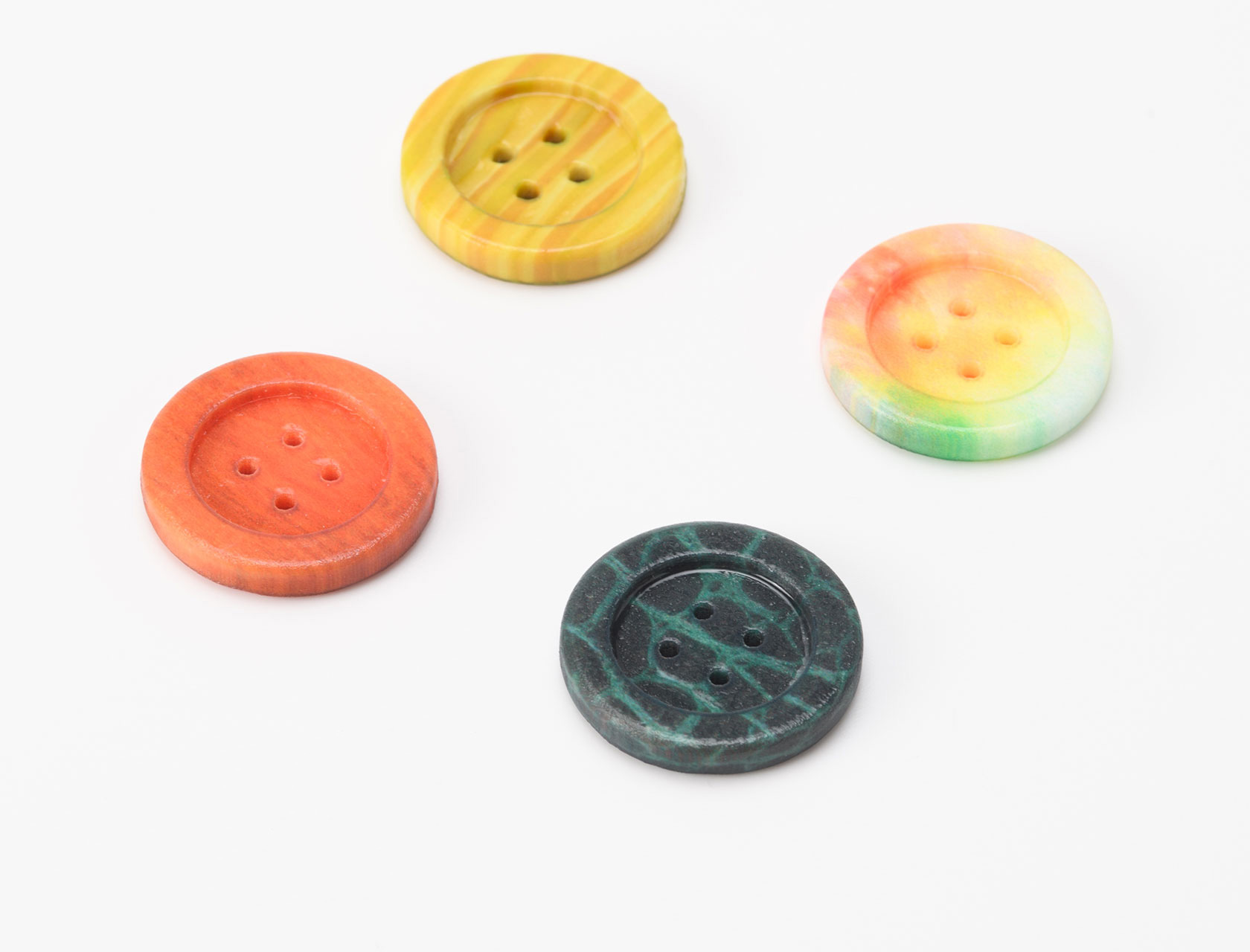

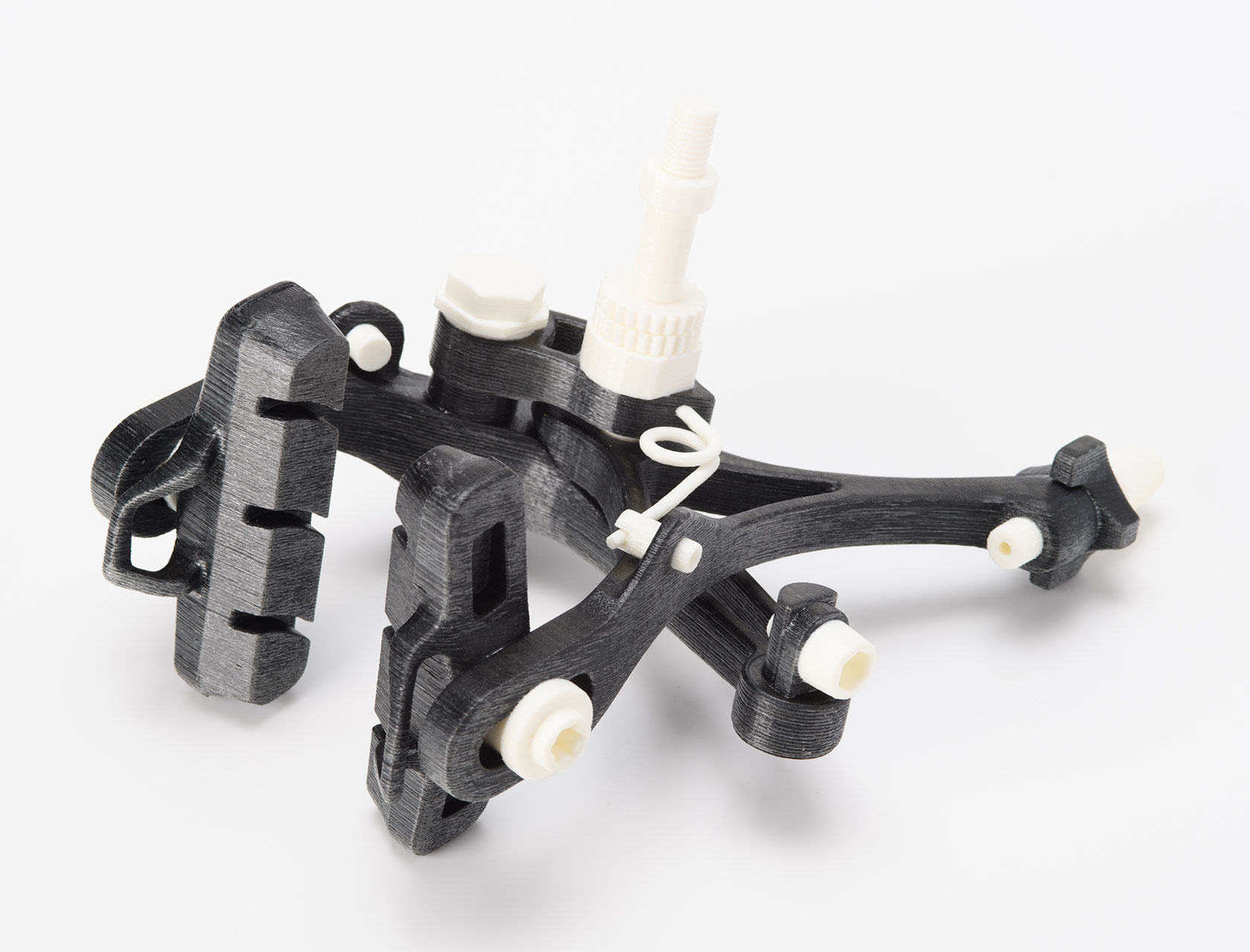

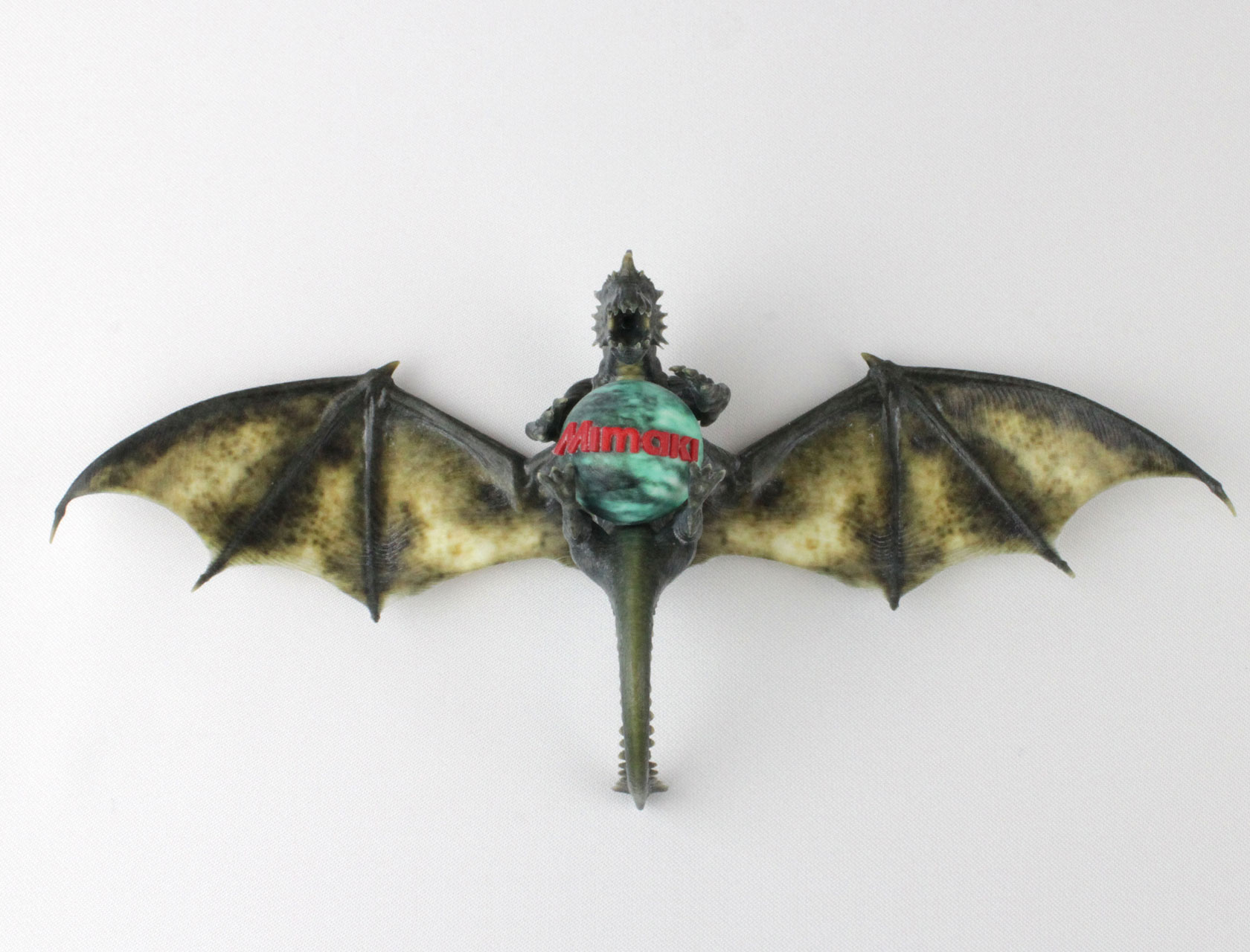

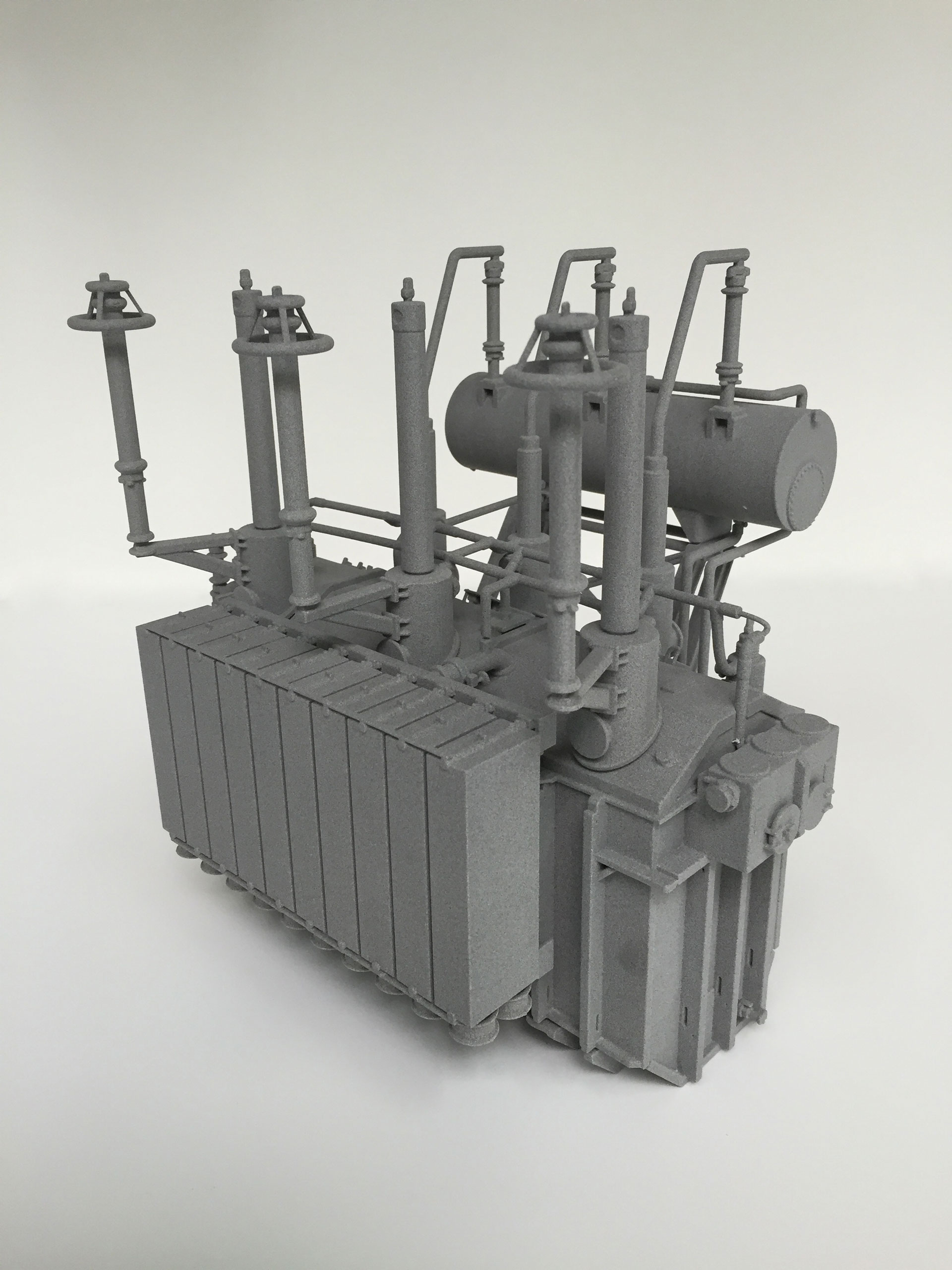

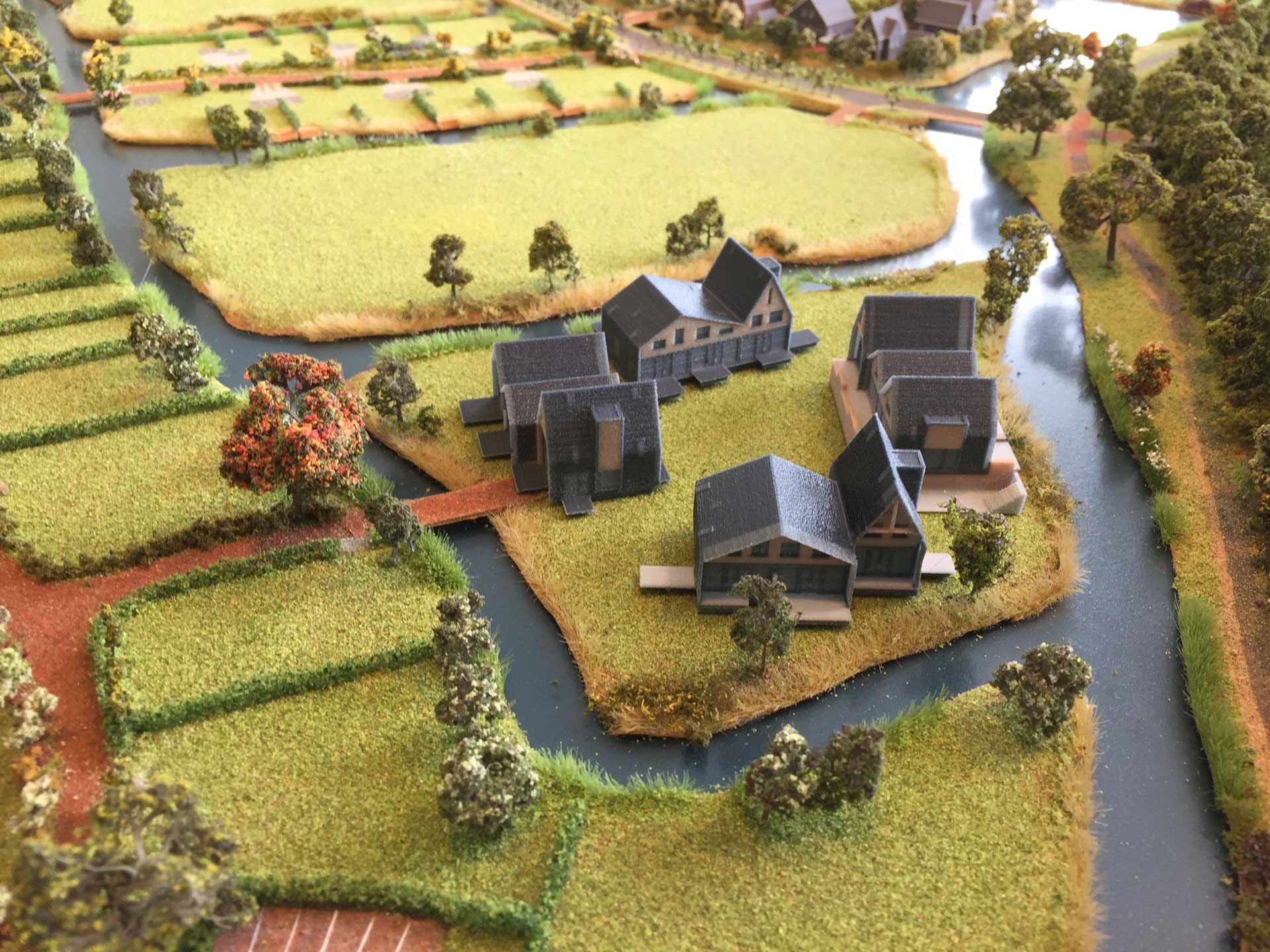

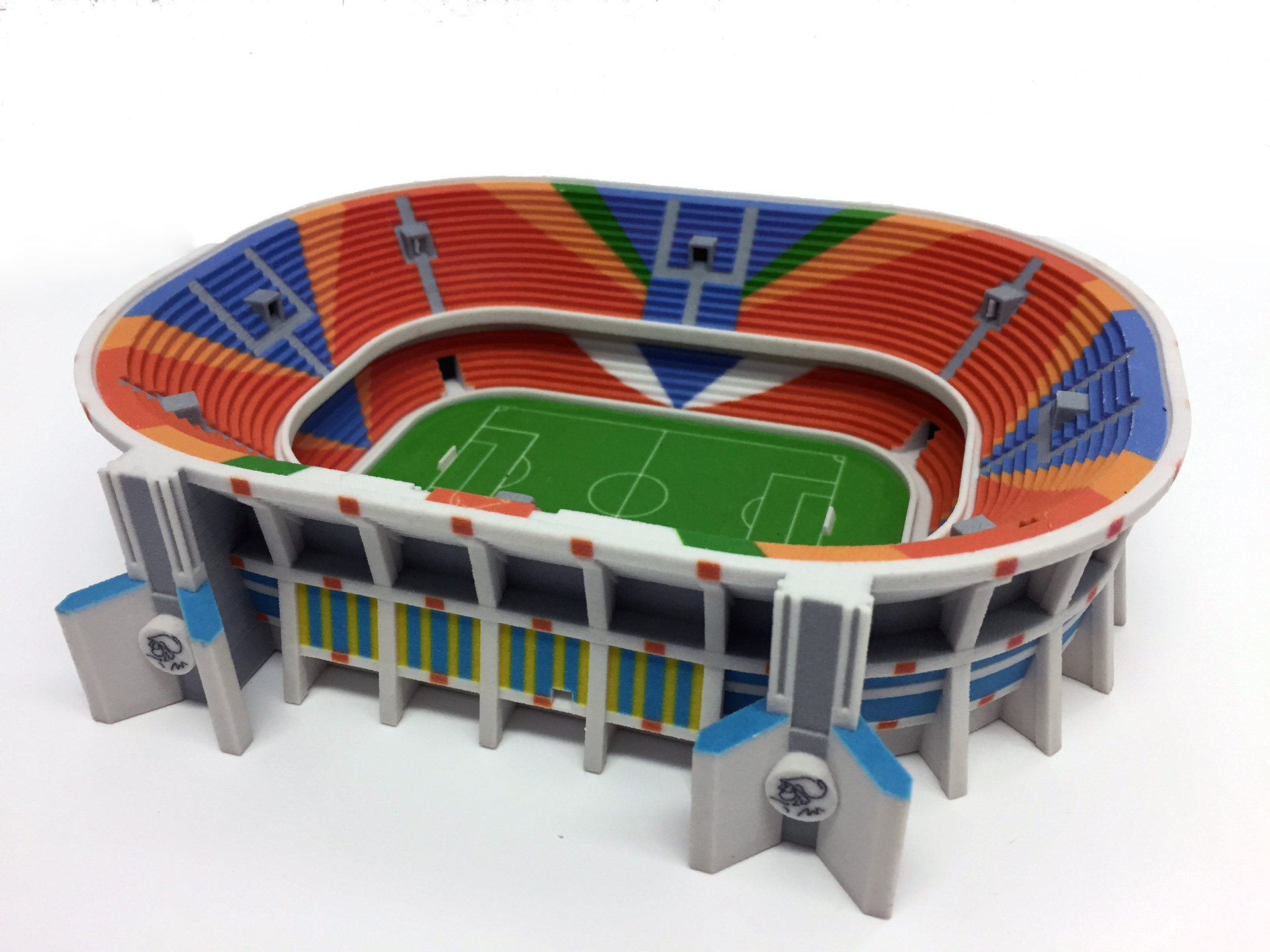

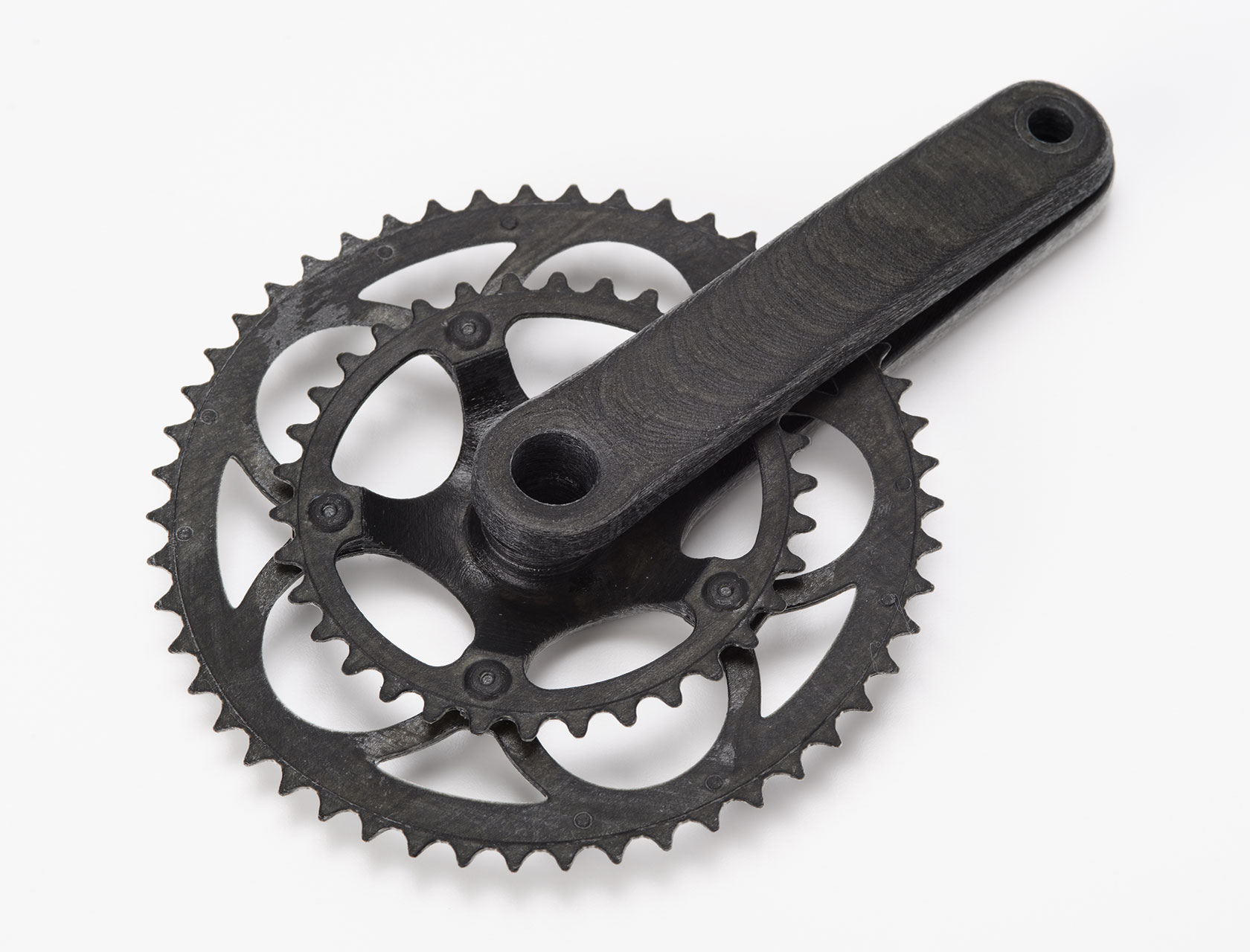

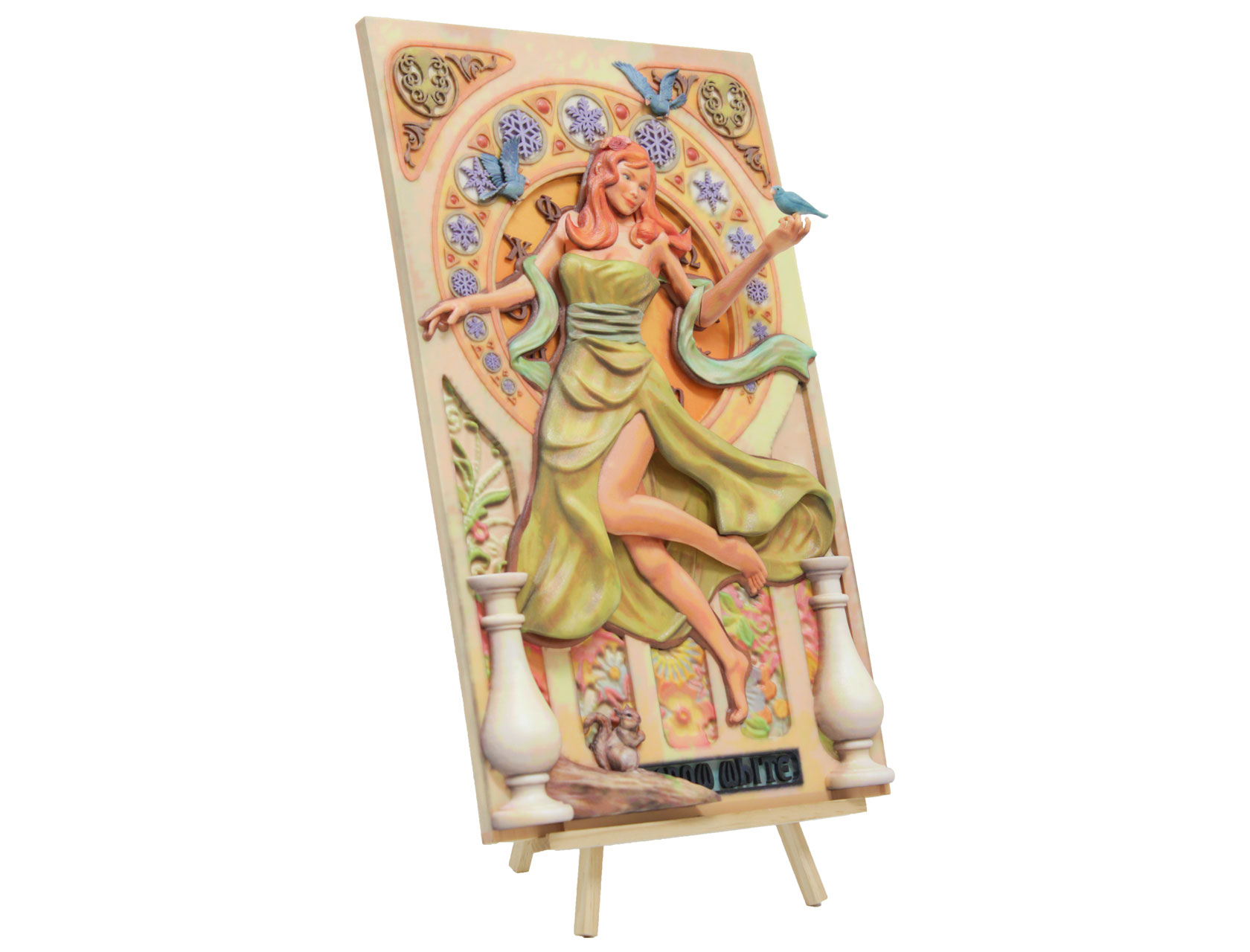

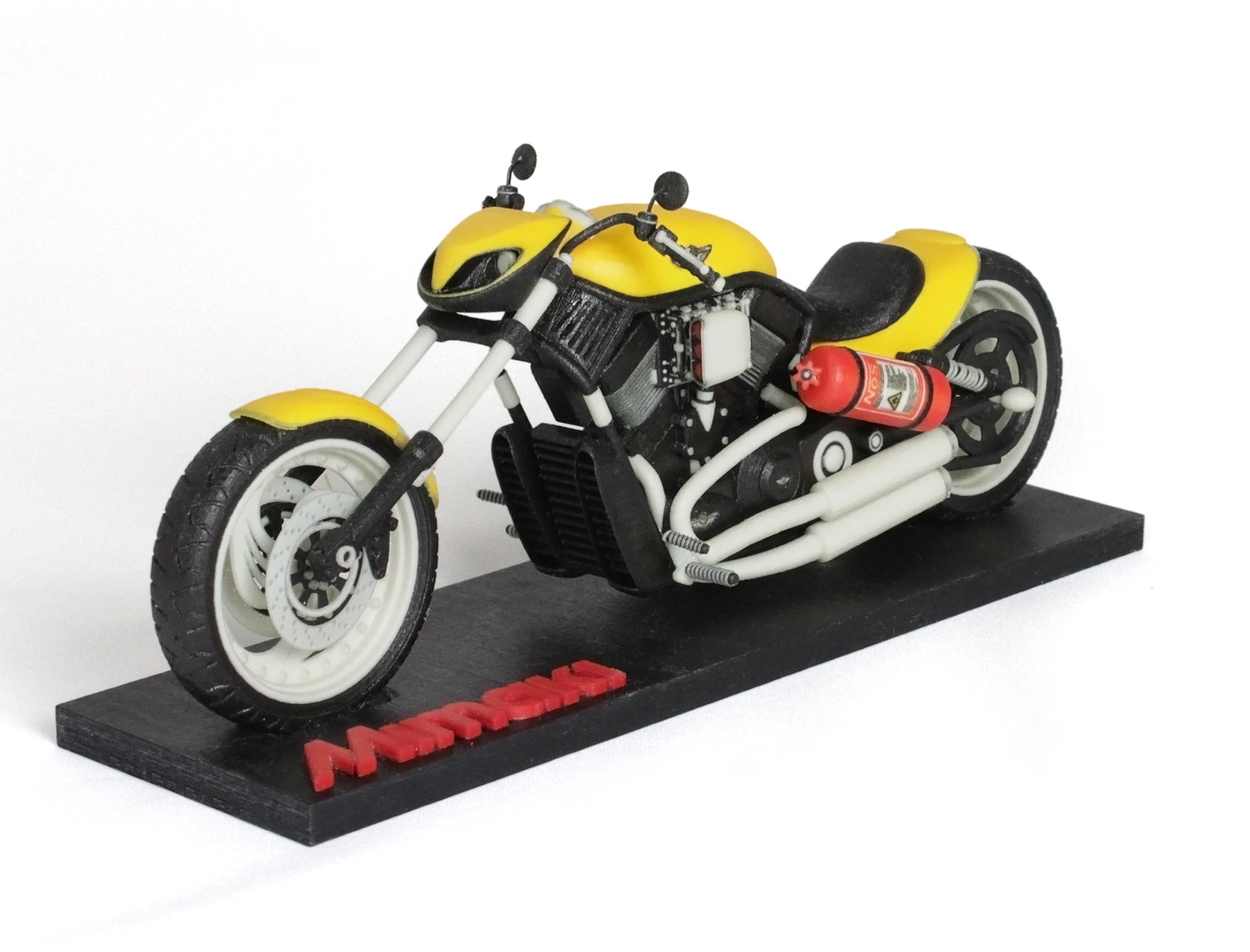

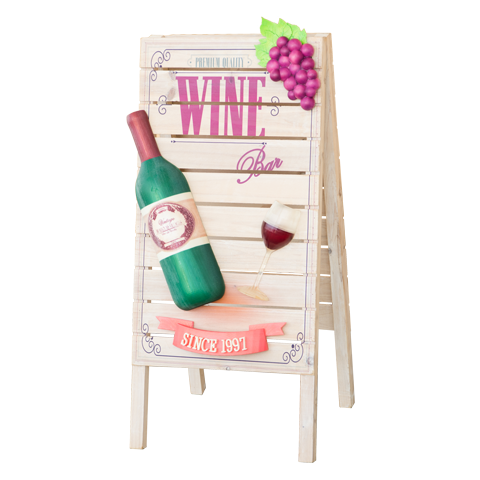

Prototypes, tools (making industry), architecture models, offshore & ship presentation models, toys, 3D art, 3D signing, accessories and more.

Specifications of CF2 Series



HEADTOOLPRESSURE
Snijkop configuratiesTDAPen / swivel cutter 20 – 400g
 Tangential cutter 300 – 1,500g
 Marking gauge roller 1,000 – 5,000g
 RCAReciprocal cutter 1,500g fixed
 BTangential cutter 500 – 1,500g
 CHigh pressure tangential cutter/ marking gauge roller 1,000 – 5,000g
SnijbereikCF2-0912: 117 x 90 cm
 CF2-1218: 177 x 120 cm
MotorX, Y, Z, Ø axes DC servo
Maximale snelheid50 cm/s
Nauwkeurigheid bij herhalingPlus minus 0.1 mm
Maximale snijdiepteTD1 cm
 RC2 cm
Media fixatieTable with vacuum system and blower function
InterfaceRS-232C
Stroom verbruikMain unit less than 300 VA,
 blower: stated separately
Dimensies (w x d x h)CF2-0912: 176 x 160 x 110 cm
 CF2-1218: 236 x 190 x 110 cm
GewichtCF2-0912: 140 kg
 CF2-1218: 180 kg




Features of 3DUJ-553

More than 10 million colours

With its UV LED curing method, the 3DUJ-553 is able to print objects layer by layer applying UV ink using CMYK, white and clear at a layer thickness of 22, 32 or 42 microns, producing a finished object of exquisite quality. UV LED curing also applies minimal heat to the object. The printer exhibits fast start-up times and minimal power usage, reducing the overall running costs.


Colour profiles

The 3DUJ-553 is the world’s first 3D printer to take advantage of colour profiles. This means not only accurate colour from the printer but also allows the development of proofing profiles for accurate viewing of colour on a calibrated monitor. This ensures accurate colour simulation before printing even begins, saving time and reducing waste.

By implementing a color proofing profile created by [MPM3] (option) to Adobe Photoshop, the colour can be simulated and checked on your monitor. The colours of the final printed object will be realistic and will approach the colours that were displayed on your monitor. By using proofing profiles, reduction of colour adjusting is a huge benefit saving your precious time. Just print your coloured object in one “shot”.


UV Inkjet method

UV curable ink is hardened with UV light. Mimaki’s technology involves laying down successive layers of UV curable ink, one on top of the other, until the desired model is completed.

3D UV inkjet method


Lamination and colour fixing

3D data is sliced and printing starts simultaneously for ink and support material until the model is completed.

Lamination and colour

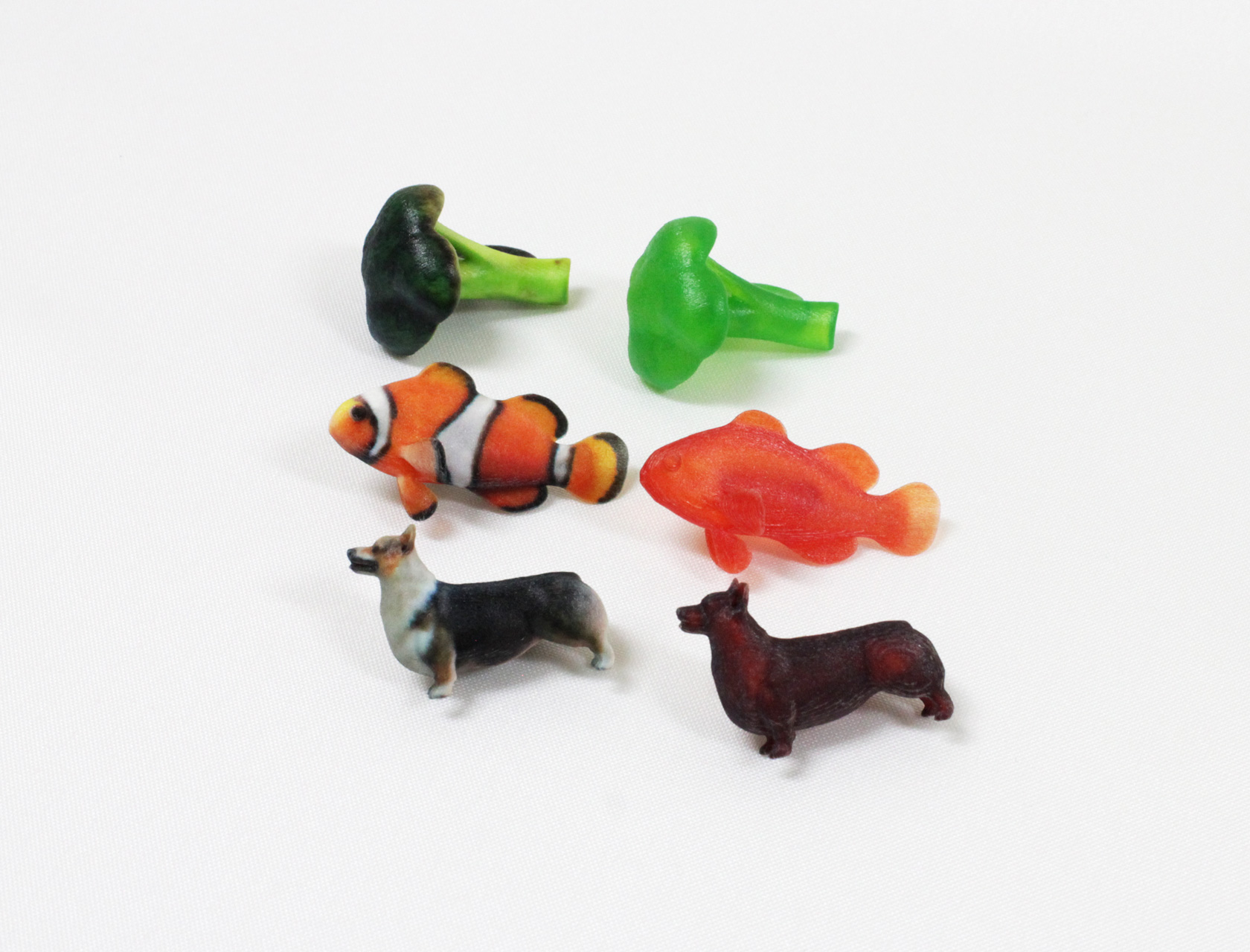

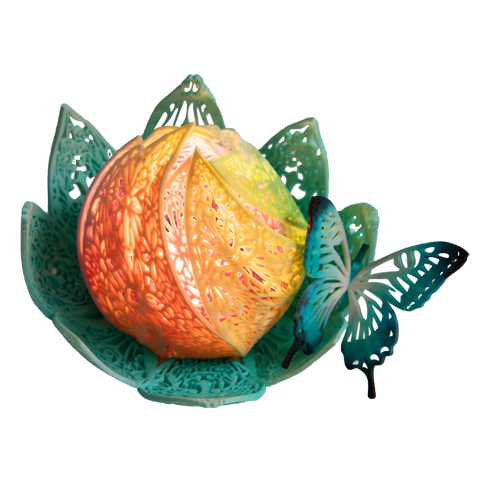

Add translucency with clear ink

Using clear ink adds an additional effect to 3D printed objects, especially if the object is illuminated. The combination of clear and CMYK inks opens the door to increased designer creativity.

clear ink effect


Excellent post-process performance

The inks used by the 3DUJ-553 contain an acrylic resin that produces hardness equivalent to ABS plastic. This means that overcoating, drilling and attachment of screws can be accomplished without damaging the object. It also adds superior weather resistance, surface smoothness and strength to the object.


Water-soluble support material

The 3DUJ-553 uses a water-soluble support structure which can be washed away with water. Removal of the support material using water, enables highly detailed models to be created without damaging the objects during this removal process.

3D removing support material


Stable operation

Continuous ink flow is made possible by using an ink sub-tank installed in the print head. This prevents pigment deposits, air bubbles and ensures ink is emitted correctly. Additionally, this prevents missing nozzles and maintains a stable print environment and keeps the up-time of the printer extremely high.


Camera for monitoring of modelling status


The 3DUJ-553 has a monitoring camera that enables users to remotely observe the modelling status.








Downloads

Brochure
3DUJ-553 - Brochure (LowRes)

3DUJ-553 – Brochure (LowRes)

2.01 MB 14677 Downloads
One Pager
3DUJ-553 - One pager

3DUJ-553 – One pager

1.78 MB 11927 Downloads
Product video

Here you will find some Frequently Asked Questions about the 3DUJ-553.
Please contact us through our contact form (above request info button) if you would like to receive more information about our 3D printer.

Specifications of Mimaki 3D printer

What is the printing method?
UV curable inkjet printing. The printed layers of UV curable acrylic resin inks create an object.

What material is used to create an object?
Mimaki genuine acrylic resin ink.

Is the support material necessary for creating an object?
Yes, Mimaki 3D printer uses the support material.

Is it possible to reuse the support material?
No, it is not possible.

What is the layering pitch?
High speed mode: 42 μm, Standard mode: 32 μm, High definition mode: 20 μm

Is the ink reusable when the modeling is failed?
No, it is not reusable.

What is the expiry of ink?
It is about one year after manufacturing.

Is it available to execute multiple data of modeling?
It is available to have modeling by locating the multiple data by layout software.

Software

Is the software developed by Mimaki?
Layout software is developed by Mimaki.
Layout software: [Mimaki 3D Link]

Is [Mimaki 3D Link] an optional software?
No, it is bundled to the printer.

What is the availabe 3D data format?
It is STL, OBJ, VRML, PLY and 3MF.

Is it possible to create a 3D data by [Mimaki 3D Link]?
No, it is not possible.

3D model

What is the available size of modeling?
The available modeling area is X=508 mm (20 in), Y=508 mm (20 in) and Z=305 mm (12 in).
As modeling is including the support material area, the modeling size will be varied depending on its shape.

Is it possible to make an object hollow?
Yes it is possible depending on the data.

How much weight will it be while modeling with the size of 500 x 500 x 300mm?
When the modeling is made in cuboid, it will weigh 80 kg approx.
